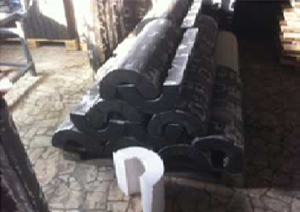

Cellular glass shells for heat insulation
Cellular glass shells for heat insulation

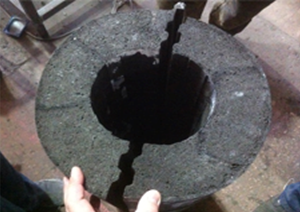

The connection of the two halves of the shell by the “heat locks”
Characteristics of the proposed material
Characteristics of the proposed material
Sizes
from 0.5 m up to 1.2 m in length and from 0.2 m up to 0.5 m outside diameter
(the samples were obtained and the experience of preparation the mentioned sizes
is exist)
Shape
accuracy is ensured by the technology and the resulted shell shape is not need in the additional sawing of outside and inside surfaces
Density
from 250 kg/m3 up to 600 kg/m3
Heat conduction coefficient
from 0.067 W/(m•K) up to 0.12 W/(m•K)
The compressive strength
from 1.5 MPa up to 7.5 MPa
Color
any, according the customer's request
The product differences from analogues
The foamed glass shells are the nearest analogue of the proposed product.
The proposed production has the following differences from the known foamed glass shells:
- Material accurately specified size directly in the furnace manufacture is possible that eliminates the sawing of finished products and leads for the smooth outside and inside surfaces
- Increased strength of the material allows its using as self-supporting
- The resulted product manufacture of exactly sizes
The proposed technology differences of from analogues
- Various types of raw materials such as glass cullet (including off-grade) and natural silicate (diatomite, tripoli, flask, zeolites) are possible
- The minimum of metal forms absence during heat treatment significantly reduces the energy intensity and excludes the defect product
- Available and maintainable equipment is applied
- High cost and hard-to-reach components are absence in raw materials
- Absence of sawing and corresponding absence of huge volumes of material scrap
- The relatively low cost of the products obtained in the range from 100 up to 160 €/m3 (it depends on raw materials type, manufacture productivity and type of products)
- The author's experience in installation and starting the manufacture of similar materials in combination with one of the highest h-index among the experts in this field
Applications
The material was tested in building constructions in extreme climate conditions of Northern Russia
